Noise vs Actionable Change in Plating Processes
A nickel plating run finishes and the thickness readings show a slight shift from the previous batch. The operator adjusts the rectifier current. The next batch shifts back the other way. Another adjustment. Three runs later, the process is more variable than it was before anyone touched anything.
This is not an unusual story. It is the default outcome when operators cannot tell the difference between process noise and a real change that requires intervention.
Every plating process generates variation. Some of it is inherent to the system. Some of it signals that something has actually changed. Treating all variation the same way makes the process worse.
What is the difference between noise and actionable change in plating?
Noise is common cause variation: the normal, predictable fluctuation built into a plating process from temperature cycling, minor rectifier output changes, chemistry consumption, and loading differences. Actionable change is special cause variation: a statistically meaningful pattern, such as a point beyond control limits or a sustained shift or trend, that indicates the process itself has changed. Operators should investigate and correct special cause signals, not adjust for ordinary noise. The easiest way to distinguish them is that noise stays within statistically expected behavior, while actionable change creates patterns that indicate the process itself has shifted.
🔍 What Is Process Variation?
All measured process data contains two types of variation: common cause and special cause.
Common cause variation is the normal, expected fluctuation built into the process. It comes from the interaction of many small factors: bath temperature cycling within its band, minor fluctuations in rectifier output, natural chemistry consumption between additions, rack-to-rack loading differences, agitation variations. Individually none of these factors is large enough to control. Together they create a predictable band of variation.
Special cause variation is something outside the normal system behavior. A rectifier component degrades. A valve sticks and changes flow rate. Bath chemistry shifts because an addition was missed or overdosed. A new lot of chemical behaves differently. These are discrete events that change how the process performs.
Key Takeaway: Common cause variation is the process speaking normally. Special cause variation is the process telling you something changed. The response to each is completely different.
The critical point is that these two types of variation require opposite responses. Common cause variation should not be adjusted away. Special cause variation should be investigated and corrected.
Most operators have no formal framework for distinguishing between them. They see a number move and react. The result is more variation, not less. Understanding what a real process signal looks like is the foundation for building that framework.
⚙️ How to Separate Noise from Signal
Statistical process control provides the framework. The mechanism is straightforward: establish what normal looks like, then use statistical rules to identify when something falls outside that pattern.
Step one is establishing baseline behavior. You need enough historical data to understand the natural variation band of your process. This means collecting readings under stable conditions and calculating the mean and standard deviation. The control limits (typically plus or minus three standard deviations) define the boundaries of expected common cause variation.
Step two is applying detection rules. Not every point outside the mean is significant. SPC rules flag specific patterns that indicate special cause:
Standard SPC Detection Rules for Plating Processes
Common Western Electric rules adapted for surface finishing process monitoring
| Rule | Pattern | What It Suggests |
|---|---|---|
| 1 | Single point beyond 3 sigma | Sudden shift or measurement error |
| 2 | 9 consecutive points on one side of centerline | Process mean has shifted |
| 3 | 6 consecutive points trending up or down | Gradual drift (chemistry depletion, electrode wear) |
| 4 | 2 out of 3 points beyond 2 sigma | Increased variation or partial shift |
| 5 | 4 out of 5 points beyond 1 sigma | Process is running off-center |
These rules exist because human pattern recognition is unreliable for this task. Operators tend to overreact to single points and underreact to gradual trends. The rules enforce consistency. Recognizing not all process changes mean the same thing is critical here: a sudden spike and a gradual drift are both special cause, but they point to completely different problems and require different investigation paths.
Step three is investigating flagged signals. When a rule triggers, the question is not “should I adjust” but “what changed.” The response is investigation, not immediate correction. Review batch records, check maintenance logs, verify chemistry additions, inspect equipment. Find the assignable cause before acting.
Implementation Tip: Start with Rule 1 and Rule 3. A single point beyond 3 sigma catches sudden events. Six consecutive trending points catches gradual drift. These two rules alone will flag most actionable changes in plating operations.
📊 What This Looks Like on the Floor
Consider a hard chrome plating operation monitoring rectifier voltage. The process has been running for months with voltage readings between 14.2 and 15.8 volts. The calculated control limits are 13.5 to 16.5 volts.
Scenario A: A reading comes in at 15.4 volts. The previous reading was 14.8. The operator thinks the voltage is creeping up and reduces the setting.
The reading at 15.4 is well within control limits. It is a normal fluctuation. The adjustment introduces new variation. The next reading drops to 14.1, and the operator increases the setting again. The process oscillates because the operator is responding to noise.
Scenario B: A reading comes in at 16.8 volts. This is beyond the upper control limit. Rule 1 triggers.
This is a real signal. The operator does not immediately adjust. Instead, they check: Was the anode area changed? Is the rectifier output actually drifting? Did bath temperature change? They find that a rectifier component is degrading and schedule replacement. The assignable cause is addressed.
Scenario C: Six consecutive readings show a steady increase: 14.8, 15.0, 15.2, 15.4, 15.6, 15.8. All individual readings are within control limits, but Rule 3 triggers.
This pattern suggests gradual drift. The operator investigates and discovers that bath chemistry has been declining between additions. The addition schedule is adjusted to match actual consumption rates. The drift stops.
The difference between these three scenarios is the framework. Without it, all three scenarios trigger the same response: an adjustment. With it, each scenario gets the correct response: ignore, investigate sudden change, or investigate gradual drift.
📉 Operational Consequences of Getting It Wrong
Responding to noise has measurable costs.
Increased process variation. Each unnecessary adjustment changes process parameters. When adjustments are made in response to random variation, they typically move the process away from its natural center. The variation grows with each intervention.
Lost production time. Investigation of false signals consumes operator time. Stopping a line to check a reading that was within normal bounds costs more than letting it run.
Operator fatigue and distrust. When operators are flagged for changes that turn out to be nothing, they stop trusting the system. They ignore real signals because the last three were false alarms. This is called alarm fatigue, and it is one of the most dangerous outcomes of poor signal classification.
Masking real problems. Constant adjustment creates noise that obscures real signals. When an operator is constantly tweaking parameters, the data becomes a record of adjustments rather than process behavior. Real drift gets buried in the adjustment noise. This is exactly why process changes become quality problems: the signal that would have triggered corrective action is hidden by the operator’s own interventions.
Key Takeaway: The cost of responding to noise is not just the adjustment itself. It is the cumulative effect: more variation, less trust, and real signals hidden by constant intervention.
The alternative is equally costly. Ignoring special cause signals means running out of control without knowing it. Bath chemistry depletes. Equipment degrades. Quality slips. The difference is that special cause signals are less frequent and more persistent than noise. They do not resolve themselves.
🚩 Common Mistakes That Create False Signals
❌ Setting control limits based on specification limits. Specification limits are what the customer requires. Control limits are what the process actually does. They are not the same thing. Setting control limits to spec limits generates constant false alarms when the process is capable, or silence when it is not.
❌ Adjusting before investigating. The instinct is to fix what looks wrong. But adjusting without identifying the assignable cause means you may be correcting the symptom while the actual problem continues. Find the cause first.
❌ Using too few data points to establish baselines. Five readings do not establish a reliable baseline. Control limits calculated from insufficient data are either too tight (generating false alarms) or too wide (missing real signals). Aim for at least 20-25 data points under stable conditions before setting limits.
❌ Ignoring the measurement system. If your measurement tool introduces more variation than the process itself, you cannot distinguish signal from noise. A thickness gauge with poor repeatability will make every process look unstable. Validate measurement system capability before trusting control charts.
❌ Treating every out-of-limit point the same way. A single point beyond 3 sigma and nine points on one side of the mean are both “out of control” but they suggest very different problems. The first suggests a sudden event. The second suggests a sustained shift. Different patterns require different investigation paths.
Operators should not respond to every change. They should respond to statistically meaningful patterns that indicate the process has changed. Noise is expected. Actionable change is not. The discipline is knowing which is which before anyone touches a setpoint.
🔗 How Lab Wizard Helps
Lab Wizard Cloud helps plating teams separate normal variation from real process change by trending process data against control limits and applying alert logic that flags statistically meaningful patterns, not every movement in the readings. That shared framework keeps operator response consistent across shifts: investigate when the pattern indicates special cause, and leave the process alone when the data stays within expected common cause behavior.
Related Resources
- What a Real Process Signal Looks Like, Understanding the characteristics of genuine process signals versus normal fluctuation

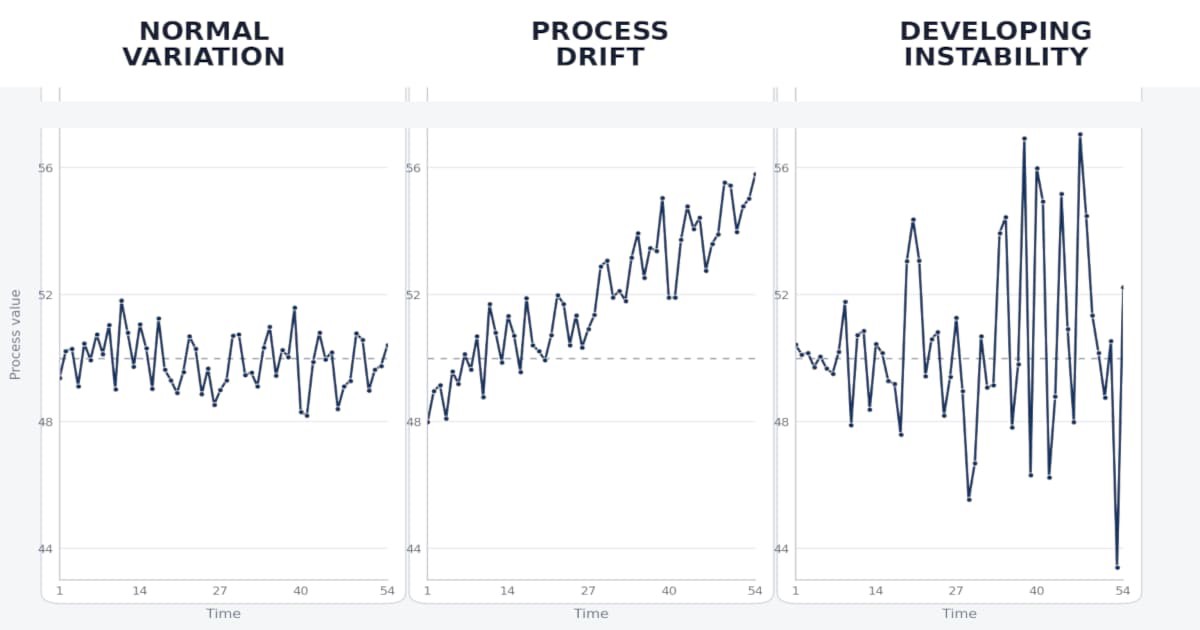

- Not All Process Changes Mean the Same Thing, Distinguishing between types of process changes and their implications
