Sampling Changes What You See

Stable plating data creates false confidence when recorded measurements appear normal but the actual process is drifting between samples, across interacting variables, or below the resolution of the measurement system. In plating, metal finishing, and surface finishing operations, stable readings do not always prove stable process behavior. They often prove only that the available data is too sparse or isolated to show the movement that matters.

🎯 When the Numbers Look Right But the Process Is Not

A plating line runs through a full shift with every parameter reading inside the expected range. The operator logs the data and the batch ships with zero defects. Three weeks later, a customer returns a batch with adhesion failures that trace back to a slow chemistry shift from that same shift. The data from that shift looked fine while the process was not.

Stable looking process data does not guarantee process stability. When measurement resolution is too coarse, when data is reviewed too infrequently, or when metrics are evaluated in isolation, accumulating process problems can hide behind numbers that appear normal. This is not a monitoring failure. It is a perception failure.

What the data shows: Parameters within range. Clean reports. No quality events.

What the data does not show: The slow drift that accumulates between measurements. The combined effect of multiple variables moving toward a failure boundary. The fact that the process was not actually stable during the period in question.

📉 How Stable Data Masks Process Drift

Process stability is not a binary state. A plating bath does not toggle between stable and unstable. It exists on a continuum, and the resolution of your measurement system determines where you place the boundary.

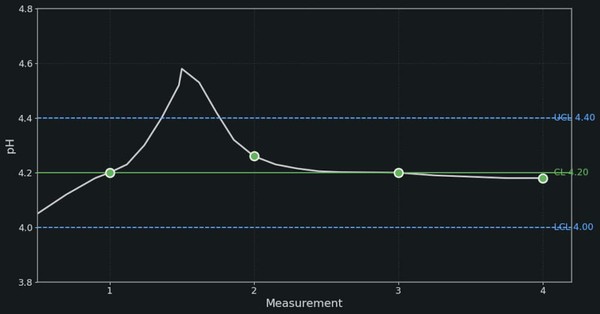

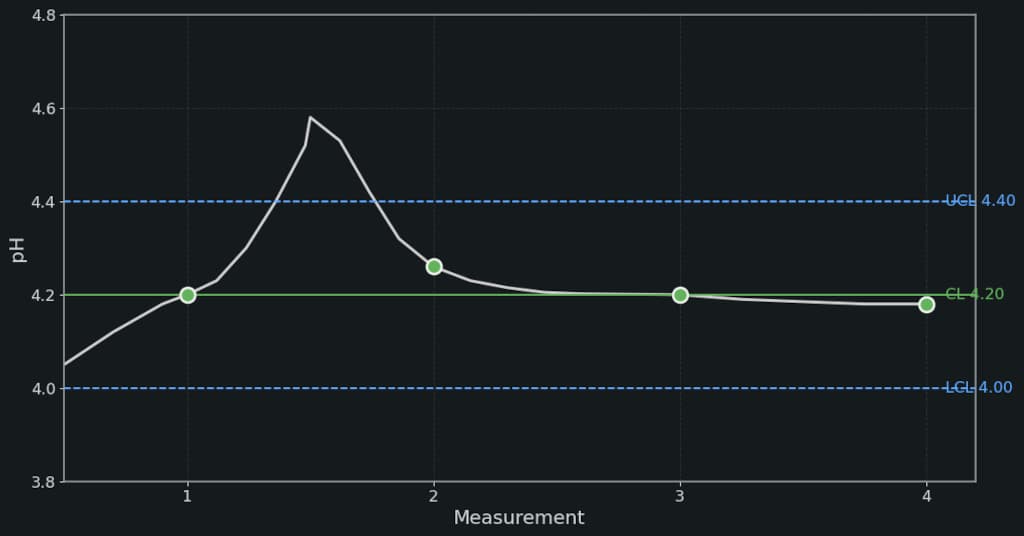

When you measure pH once per shift and the reading shows 4.2, the bath may have drifted from 3.8 to 4.6 during that shift before settling back to 4.2 by the time the sample was taken. The single data point captures only the endpoint. Conditions outside your acceptable range between measurements are invisible to the record.

This mechanism operates across multiple process variables simultaneously. Temperature drifts due to heating cycle timing, conductivity shifts through drag-out and evaporation, and additive concentrations degrade at rates depending on current density, part geometry, and production volume. None of these changes are discrete. They are continuous, and continuous change is invisible to discrete measurement.

The problem compounds when multiple variables drift in the same direction but remain individually within spec. A bath at the high end of the pH range, the low end of the temperature range, and the high end of the conductivity may still produce acceptable parts. The combined effect moves the process closer to a failure boundary. Each individual reading looks fine while the combined state is deteriorating.

This mechanism is the same one that explains why drift is missed even when data exists. The data points land inside acceptable ranges while the process trajectory crosses failure boundaries between measurements.

Stable data is a snapshot, not a guarantee. It tells you what the process looked like at the moment of measurement, not what it did between measurements.

The illusion of stability strengthens when the process runs without a quality event for an extended period. Absence of defects is not evidence of stability. It is evidence that the process has not yet crossed a failure threshold, which can shift over time as chemistry degrades, anodes consume, and racks wear. The baseline changes, and the data that once indicated stability begins indicating something different without triggering any alert.

🔍 Recognizing False Confidence in Your Data

False confidence in process data does not announce itself. It presents as normal operations, routine compliance, and clean quality reports. Recognizing it requires looking at the data differently than you currently do.

Start by examining the spacing between your measurement points. If pH is measured at the start and end of a shift, that is two data points covering eight hours. Any excursion that occurs and resolves between those two points leaves no trace. If temperature is checked only when a quality issue arises, the data tells you nothing about process behavior during normal production.

Look at how your metrics interact. A common pattern in plating operations is evaluating each parameter independently against its own acceptable range. pH within range, temperature within range, conductivity within range. Each passes, but the interaction between these variables determines plating quality and can shift even when each variable remains individually compliant.

This pattern is closely related to the distinction between signal and noise in process data, where apparent stability in individual readings masks correlated drift across multiple variables.

Review your data for patterns that suggest measurement resolution is too coarse. If your control limits span a range of 0.5 pH units and your measurements cluster tightly in the center, the data may indicate stability when it actually indicates that your measurement frequency cannot detect the drift that would push the process to the edge of the range. Most manufacturing problems are not caused by missing information. They are caused by information that appears complete but is actually incomplete.

Key Takeaway: Review your sampling plan whenever a quality failure appears without warning. The absence of data is not the same as the absence of change.

The measurement gap is the danger zone.

Another signal of false confidence is the absence of adjustment activity. If your process data shows minimal variation and your operators rarely make chemistry adjustments, ask whether the process is genuinely stable. Ask whether the measurement system is not capturing the variation that would normally trigger an adjustment. Stable data combined with no corrective action can mean the process is being allowed to drift until it crosses a spec limit.

A process that oscillates within a narrow range after every shift is not necessarily stable. It may be cycling within a range that your sampling plan cannot resolve. The data looks flat because you are only capturing the endpoints of the cycle.

Examine the relationship between your data review cadence and your production cadence. If you review process data weekly but run multiple batches per day, the review frequency is disconnected from the production rhythm. The data you are reviewing is a compressed summary of a much more dynamic process. Automated monitoring systems can help bridge this gap by providing continuous process visibility without requiring manual sampling at every interval.

What you see: Clean data reports, parameters within spec, zero defects on recent batches.

What is happening: The process is drifting through acceptable ranges. The gaps between measurements hide the excursions. Combined drift across multiple variables pushes the process closer to failure boundaries.

📊 The Operational Cost of Misreading Stable Data

When operators and managers interpret stable data as stable process, the consequences accumulate quietly. They do not appear as a single quality event. They appear as a pattern of avoidable problems.

The cost of false confidence compounds with every decision made on incomplete data.

Implementation Tip: Map your measurement frequency against your production batch frequency. If you run more batches per day than measurements per shift, your sampling plan is not capturing actual process behavior.

Scrap is the most direct cost. Parts plated under conditions that fall outside the acceptable range produce defects only visible at inspection. By the time the defect is detected, the material, chemical, and labor costs are already sunk. The gap between the clean production data and the rejection report is where the cost was created.

Rework compounds the scrap cost. Parts that can be reworked require additional plating cycles, chemistry consumption, and inspection time. Each rework cycle moves the part further from efficient production and closer to the scrap threshold.

Overprocessing is a less visible but equally costly consequence. When operators perceive that process conditions are borderline, they sometimes compensate by extending plating time or increasing current density. These adjustments push the process in the opposite direction from the actual problem, following the same pattern described in the hidden damage of over-adjusting a process. The overprocessing creates new problems while the original drift continues unchecked.

Throughput suffers when process instability is not detected early. A process that drifts slowly over multiple shifts requires a larger corrective action than one caught in its first hour of deviation. Larger corrections mean longer downtime, more chemistry adjustment, and more risk of introducing new variation during the correction process.

The cost of a false confidence reading is not the measurement itself. It is the decision made based on an incomplete picture of process behavior.

Absence of defects is not proof of process stability.

Quality system audits also reveal the gap. When an auditor reviews your process data and sees clean, stable readings, they may conclude your process control is adequate. But the auditor is looking at the same incomplete picture. If your sampling plan and data review procedures cannot demonstrate that you are capturing actual process behavior, the audit finding will be about the system that produced the data, not the data itself.

⚠️ Common Mistakes That Reinforce False Confidence

❌ Treating a single measurement as representative of an entire shift’s process state without acknowledging the gap between measurement points and actual continuous behavior

❌ Evaluating each process parameter independently without considering how combined drift across multiple variables moves the process toward failure boundaries

❌ Using the absence of defects as evidence that the process was stable during the production window, rather than recognizing that defect absence only indicates the process stayed within failure thresholds

❌ Reviewing process data on a fixed schedule that is disconnected from production volume, batch frequency, or chemistry consumption rates

❌ Assuming that control chart stability means the process is safe, without recognizing that in-control data can mask slow drift that is only visible at higher measurement resolution

❌ Failing to update acceptable ranges as the process baseline changes over time due to anode consumption, rack wear, or chemistry degradation
